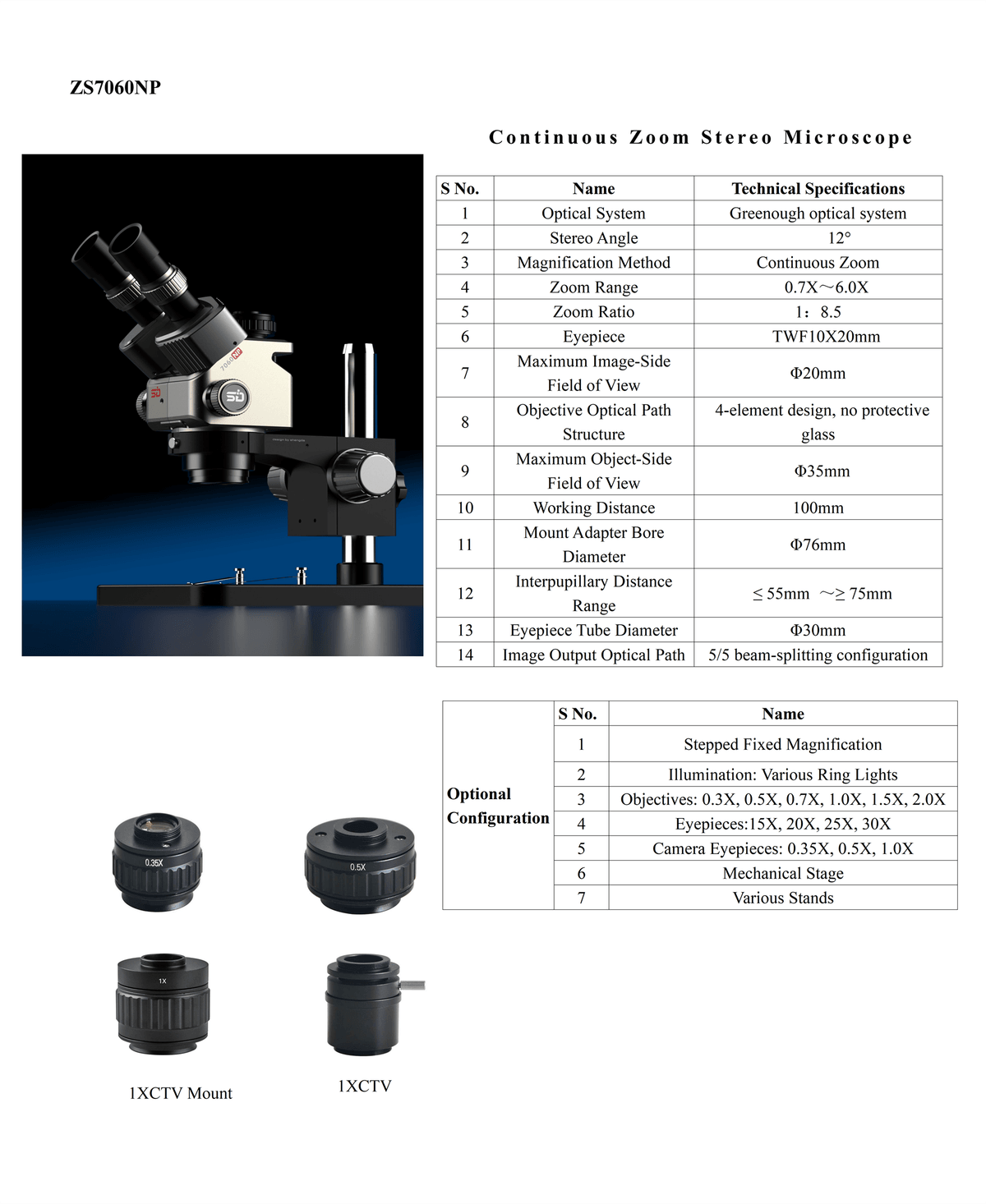

Standard Configuration

Optical System: Greenough optical system

Stereo Angle: 12°

Magnification Method: Continuous Zoom

Zoom Range: 0.7X～6.0X

Zoom Ratio: 1:8.5

Eyepiece: TWF10X20

Maximum Image-Side Field of View: Φ20mm

Objective Optical Path Structure: 4-element design, no protective glass

Maximum Object-Side Field of View: Φ35mm

Working Distance: 100mm

Mount Adapter Bore Diameter: Φ76mm

Interpupillary Distance Range : ≤55mm ～≥75mm

Eyepiece Tube Diameter: Φ30mm

Image Output Optical Path: 5/5 beam-splitting configuration

Optional Configuration

Stepped Fixed Magnification

Illumination: Various Ring Lights

Objectives: 0.3X, 0.5X, 0.7X, 1.0X, 1.5X, 2.0X

Eyepieces:15X, 20X, 25X, 30X

Camera Eyepieces: 0.35X, 0.5X, 1.0X

Mechanical Stage

Various Stands
