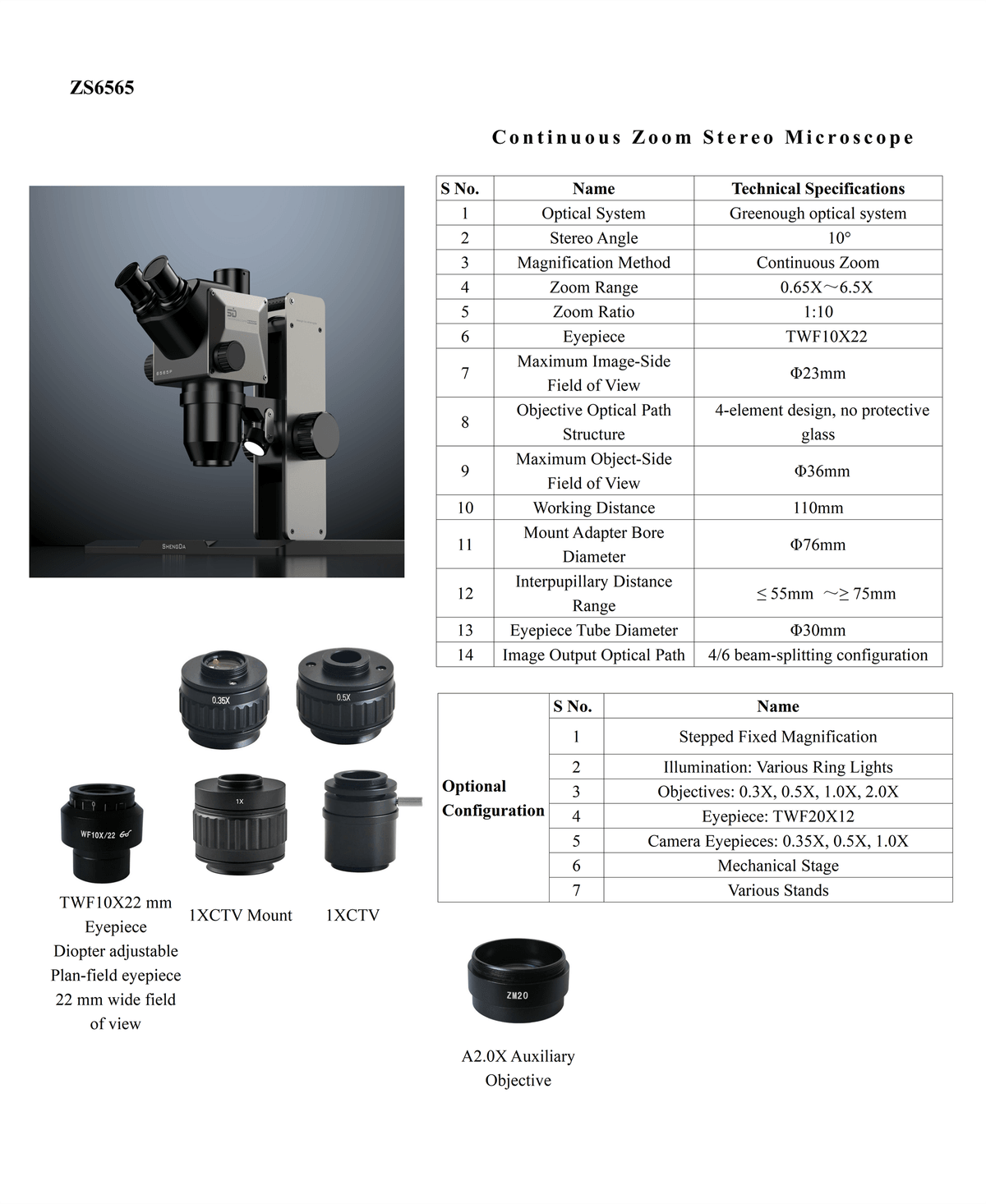

Standard Configuration

Optical System : Greenough optical system

Stereo Angle: 10°

Magnification Method: Continuous Zoom

Zoom Range : 0.65X～6.5X

Zoom Ratio: 1:10

Eyepiec: TWF10X22

Maximum Image-Side Field of View: Φ23mm

Objective Optical Path Structure: 4-element design, no protective glass

Maximum Object-Side Field of View: Φ36mm

Working Distance: 110mm

Mount Adapter Bore Diameter: Φ76mm

Interpupillary Distance Range : ≤55mm ～≥75mm

Eyepiece Tube Diameter: Φ30mm

Image Output Optical Path: 4/6 beam-splitting configuration

Optional Configuration

Stepped Fixed Magnification

Illumination: Various Ring Lights

Objectives: 0.3X, 0.5X, 1.0X, 2.0X

Eyepiece: TWF20X12

Camera Eyepieces: 0.35X, 0.5X, 1.0X

Mechanical Stage

Various Stands
