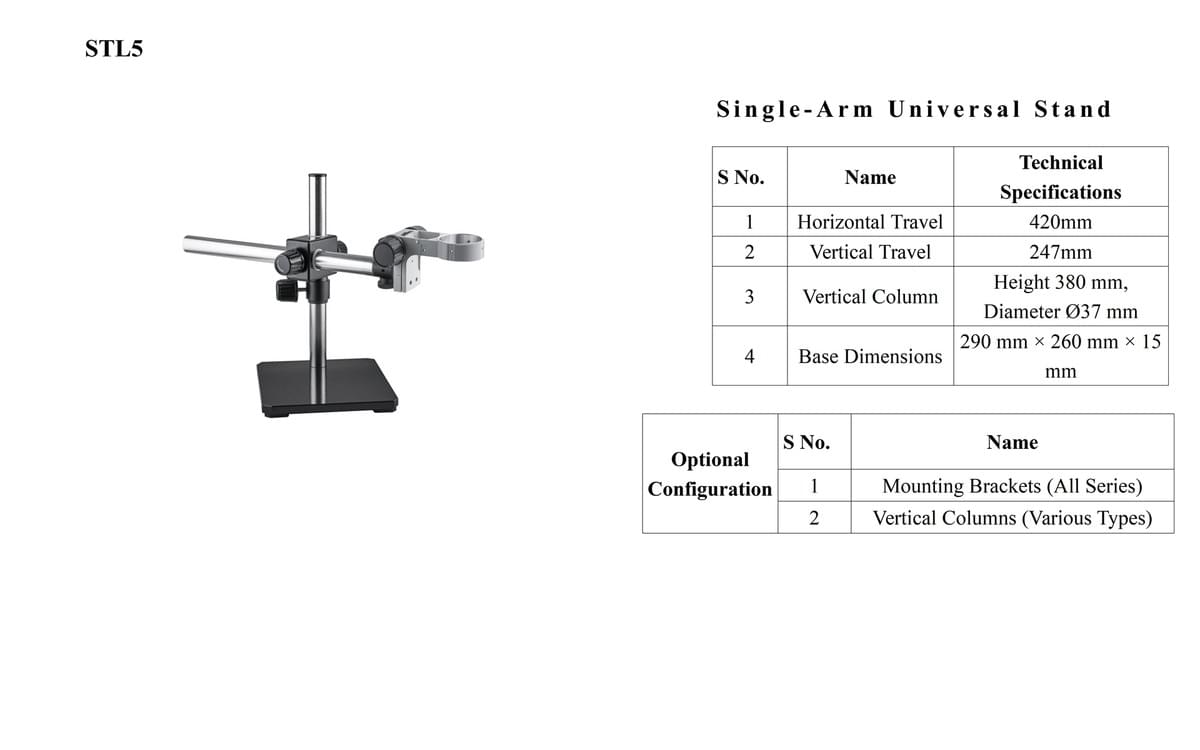

Standard Configuration

Horizontal Travel: 420mm

Vertical Travel: 247mm

Vertical Column: Height: 380mm, Diameter: Ø37mm

Base Dimensions: 290mm X 260 mm X 15 mm

Optional Configuration

Mounting Brackets (All Series)

Vertical Columns (Various Types)
