Standard Configuration

Viewing Head: Monocular/Binocular/Trinocular viewing head, 30° inclination, Adjustable interpupillary distance: 48mm-75mm

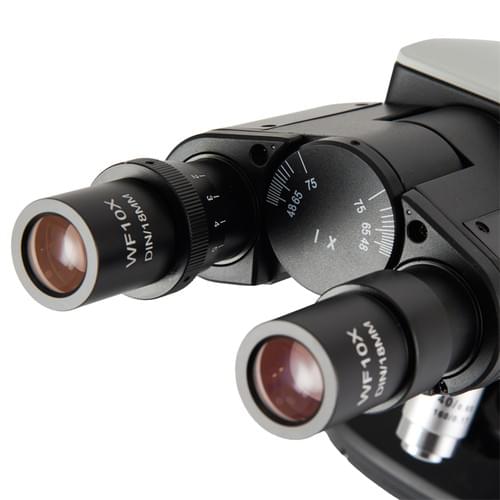

Eyepiece: WF10X18B

Photography Eyepiece: 1X photography eyepiece (compatible with trinocular viewing head)

Nosepiece: Quadruple nosepiece

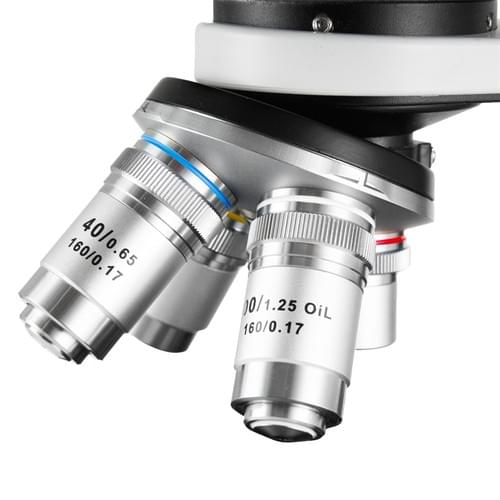

Objective: 195mm achromatic objective 4X,10X,40X,100X

Condenser: Abbe N.A. 1.25 condenser with variable iris diaphragm

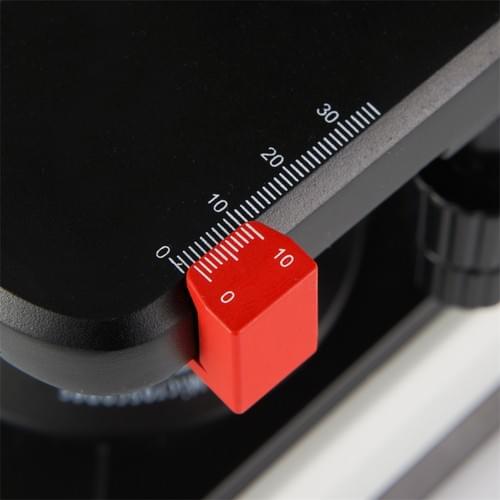

Stage: Double-layer mechanical stage: 115mm × 125mm  Travel range: 71mm × 23mm

Focusing System: Coaxial coarse and fine focus system, fine focus graduation value: 0.02mm

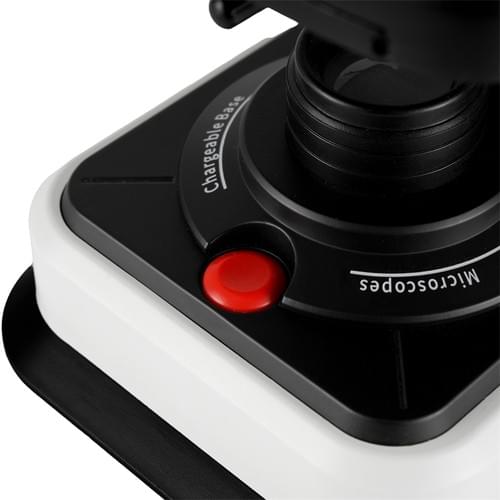

Illumination: LED 1W with adjustable brightness, rechargeable

Power Adapter: Input: AC100-240V~50/60Hz,Output: DC5V 1A Type-C interface

Optional Configuration

Color Filters: Blue, Yellow, Red

Eyepieces: WF16X/13B, WF20X/8B, WF25X/8B

Objectives: Finite plan achromatic objectives

Focusing System: Gear box (fine focus graduation value: 0.002mm)

Light Source: White + Yellow (wavelength 450-455μm)

Adapter: DC12V 1A
